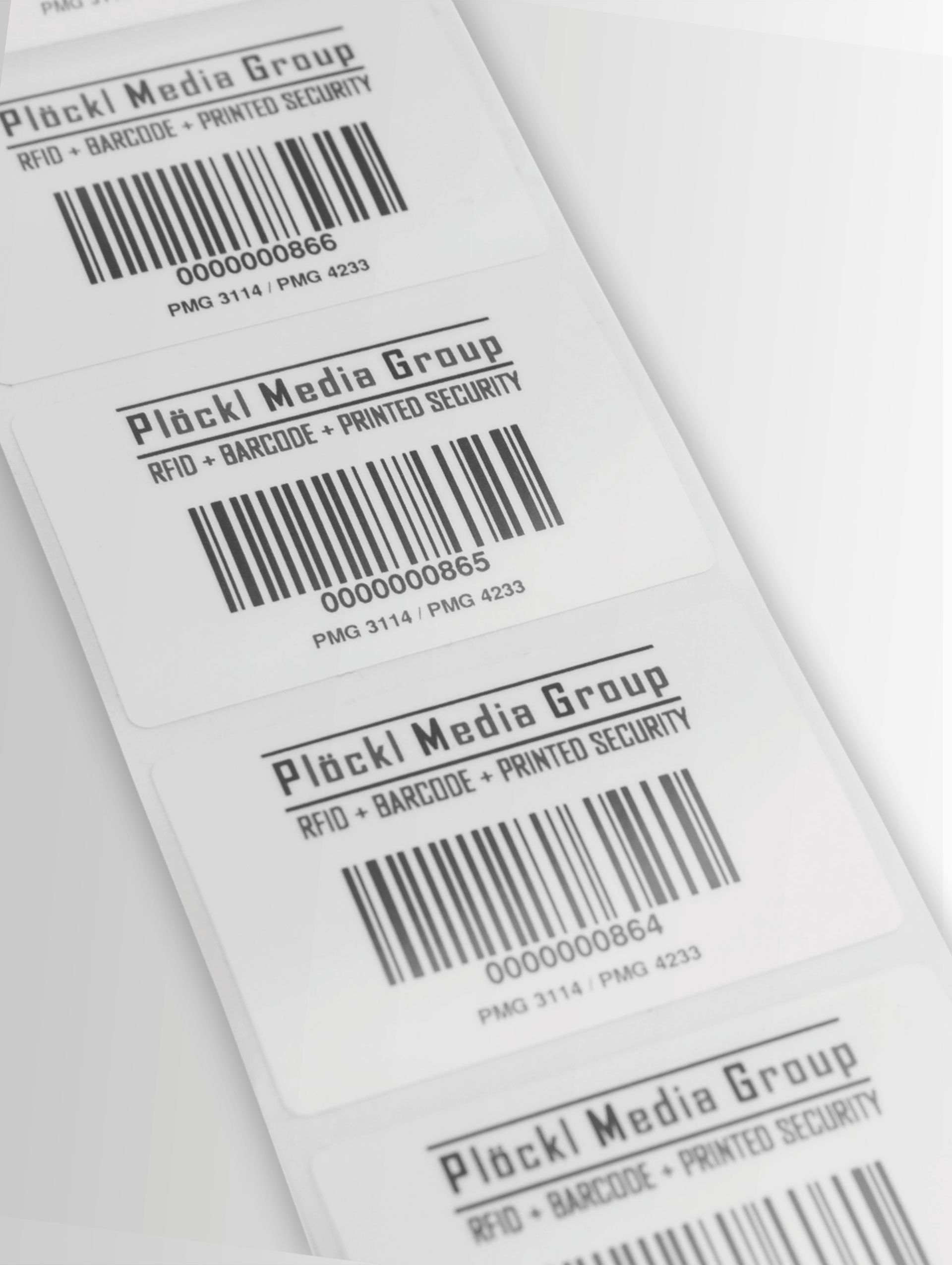

PMG OnMold Barcode Labels

Self-adhesive PMG OnMold barcode-labels as a permanent marking solution for indoor and outdoor use

Whether in intralogistics, industrial production or other predominantly automated supply chains – without continuous object identification, efficient process control is either rendered completely impossible or only possible with a great deal of additional expense.

It is therefore imperative that barcode labels do not get lost or damaged, while simultaneously providing a permanent high-contrast printed image. PMG OnMold barcode labels fulfill all the demands of object labeling as regards durability, weather resistance, toughness and machine legibility.

Optionally integrable tamper protection also guarantees excellent counterfeit protection, particularly when it comes to high-grade goods.

Designed for longevity, even when under high stresses

One single application for long-term identification is what the user wishes for when applying permanent labels to boxes, containers, pallets, storage positions and logistics assets.

PMG OnMold barcode labels are designed with precisely this in mind. They are made of a sturdy polyester basic laminate with a wash-proof and UV-resistant layer of print applied to the upper surface, thus making it possible to permanently provide a high-contrast and, at the same time, individual surface design with barcodes, numbers, figures, characters and logos.

The underside of the labels is coated with a synthetic, permanently adhering hybrid adhesive with a high peel adhesion strength – 20 N at 25 mm on stainless steel, which reliably ensures that the label remains on the object permanently – even on high and low-energy surfaces such as glass, PP (polypropylene), PB (polyethylene) or ABS.

The temperature resistance of PMG OnMold barcode labels is specified at -40 °F (-40 °C) to +176 °F (+80 °C) – and even briefly up to +320 °F (+ 160 °C). As a result, the labels can remain on the object in deep-freeze applications, in high-temperature washing and drying processes, or other thermally demanding environments.

Other facts about OnMould barcode labels from PMG:

• Moisture-resistant and water tight
• Resistant to a large number of acids and alkalis, numerous solvents, as well as conventional industrial cleaning agents and disinfectants
• Also suitable for extreme outdoor use with direct exposure to the sun, rain, frost and snow
• Exposure/weathering tests performed in accordance with EN ISO 11341 cycle A (exposure) and C (weathering) confirm a high resistance to environmental influences
• Fungal-resistant, non-fungal-promoting
• All of the materials used meet the requirements of REACH regulation 1907/2006/EG, as well as the current RoHS (Restriction of Hazardous Substances) guidelines.
• Comprises a tough polyester base material with a synthetic, permanently adhesive acrylate glue

• The PMG OnMold barcode label is also equipped with a UV-resistant, scratchproof and liquid-resistant protective film
• Very good adhesion on high and low-energy surfaces, and structured containers

• The temperature resistance of OnMold barcode labels from PMG is between -40 °F and +266 °F / -40 °C and +130 °C

• All of the materials used meet the requirements of REACH regulations 1907/2006/EG, as well as the current RoHS guidelines

• Available with full color printing or black & white
• Full customization options
• Complies with food contract regulations

*Information is dependent on the selected material

Typical application areas:

PMG OnMould barcode labels are supplied on reels. They guarantee a reliable and long-term identification of containers, pallets, shelf compartments, storage areas and mobile assets in intralogistics, and in industrial assembly and manufacturing processes. Other possible uses lie in the field of medical technology for labeling operating materials or transportation boxes in different industries. They are also perfectly suited to the permanent and, where necessary, forgery-proof labeling of inventory.
